PLANT SOLUTIONS UP TO 1T/H

DESCRIPTION

The ECOKRAFT LP22 pellet mill is specially designed for dry and fine-grained biomasses with a maximum size of 6 mm. With its modern and highly efficient design, it offers a 22 kW electric motor, a user-friendly touch display, an integrated lubrication and water pump, and an innovative plug & play system. This allows further ECOKRAFT machines to be connected at any time and operated as a complete system.

​

The ECOKRAFT LP22 sets a new standard for compact pelleting combined with state-of-the-art control technology. A powerful plug & play 22 kW motor, a completely redesigned pan grinder system and a technically simple plug & play system for the integration of additional ECOKRAFT machines characterize this groundbreaking pellet mill. A quick changeover of the pellet diameter or the biomass used is possible without any problems.

Highlights:

• Central control of the entire pelleting line

• Material homogenization and metal separation using magnets

• Conical roller set for more throughput and less wear

• Material change possible in just 5 to 10 minutes

• Low power consumption (connection and consumption)

• GSM error message and remote maintenance

• easiest operation and maintenance

• modular expandable

• mobil

​

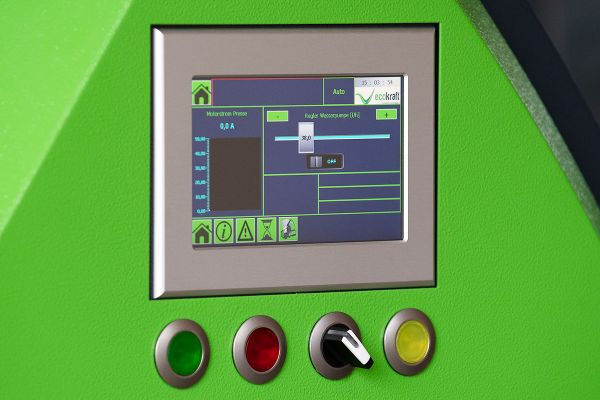

Screen

The display is the control center for the entire pelleting line

• Overview of the complete pelleting line

• Customization of all modules

• Fine dosing of water addition

• Determination of the lubrication intervals (central lubrication)

• Shutdown of all modules in case of failure

• Malfunction and error diagnosis with message on mobile phone with GSM possible

• Remote maintenance module

​

Material bunker

• Material homogenization of the material density

• Magnetic separator for removing metallic foreign objects

​

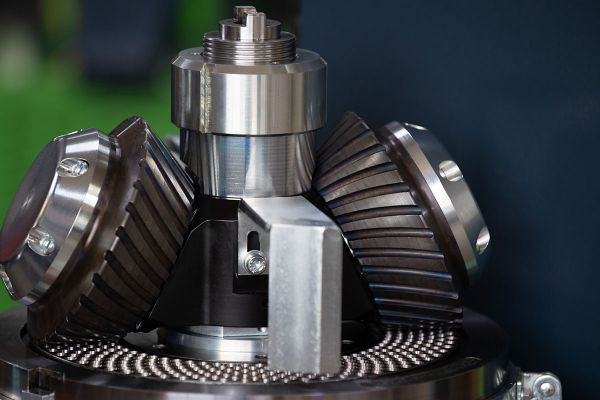

Tapered yoke set 4.0

• Optimum material distribution on the die

• More gentle processing of the material

• More throughput with the same energy consumption (compared to normal mule set)

• Cold pelleting (pressing) at below 50 degrees for sensitive materials (e.g. hops)    possible

• For smoother running

• Less wear and tear

• Automatic emptying function of the pressing chamber at production change or end.

​

Flat die

• With individual chambers for pre-compression

• 3 mm to 16 mm pellet diameter possible

• Quick and easy replacement when changing materials in 15 minutes

​

Additional advantages

TEE

• Individually adjustable pellet length from 0.5 to 5 cm

​

CENTRAL LUBRICATION

• Supply of 4 lubrication points via interval control

​

DIE BEARING

• Up to 2 spare matrices can be stored directly in the LP 22

​

INTERFACES

• Up to 3 additional modules (material bunker, conveyor belt and screening system) can be connected to the pellet press and controlled centrally.

​

MODULAR

• Can be expanded from a single pellet press to a fully automated pelleting line.

​

MOBILE

• All modules can be transported very easily and quickly.

TECHNICAL SPECIFICATIONS
